Builds through-hole lead.

syntaxSyntax:

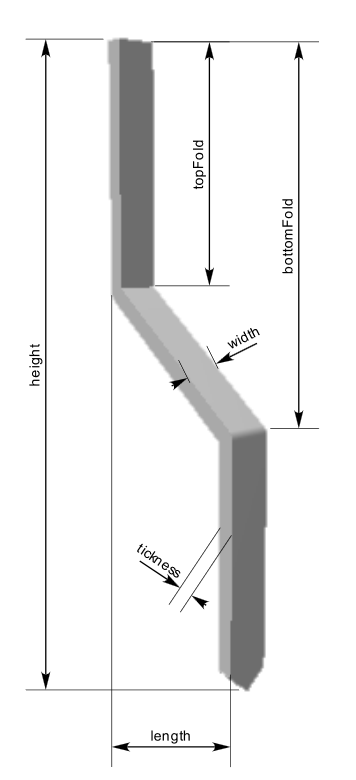

DlxLead.Zeta(style, width, height, tickness, bottomFold, topFold, length, arrowfactor=1)

Parameters

Parameter Description
style A Dlx3DStyle object or the index of the style. There are 10 styles available with indexes from 0 to 9.
arrowfactor Value of the tip angle indicated with a value from 0 to 1. Enter 0 for a flat terminal.

Return Value

If the operation ends correctly it returns true otherwise it returns false.

Example

  Copy codeCopy code
function OnBuild3DModel()
{
  var ctx = FWiz.Get3DModelCtx();
  var style = FWiz.Get3DStyle(0);
  style.SetStyle("silver");

  var pin = new DlxLead();
  pin.Zeta(style, 0.8, 8.6, 0.5, 3.7, 1.6, 6);
  ctx.Add(pin);
}
