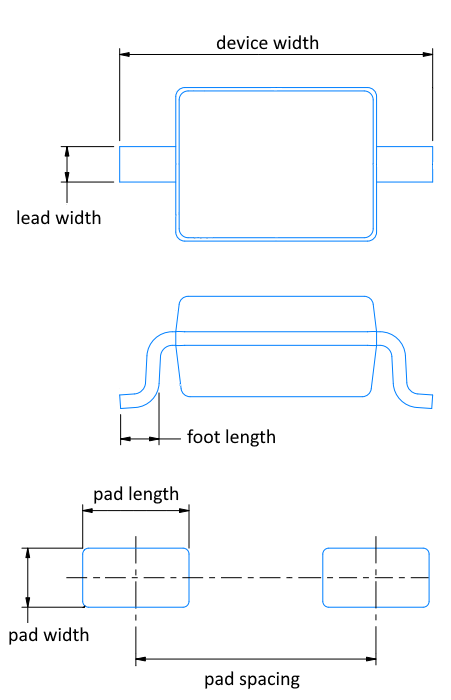

Calculate the distance between the pads of an SMD device. The calculation takes into account the IPC level selected in the Footprint wizard dialog box.
 Syntax: |
|---|
|
FWiz.CalcSMDPadSpacing(deviceWidth, footLength, leadWidth)
|
Parameters
| Parameter |
Description |
| deviceWidth |
A string with the parameter name specifying the overall width of component. The parameter must be defined with DefineDimensionRange in the OnInitialize event handler function.
|
| footLength |
A string with the parameter name specifying the foot length of lead. The parameter must be defined with DefineDimensionRange in the OnInitialize event handler function.
|
| leadWidth |
A string with the parameter name specifying the width of the lead. The parameter must be defined with DefineDimensionRange in the OnInitialize event handler function.
|
Return Value
Returns the calculated value for the parameter: pad spacing.
Example
|
|
 Copy code
|
|
See also
