Builds through-hole lead.

syntaxSyntax:

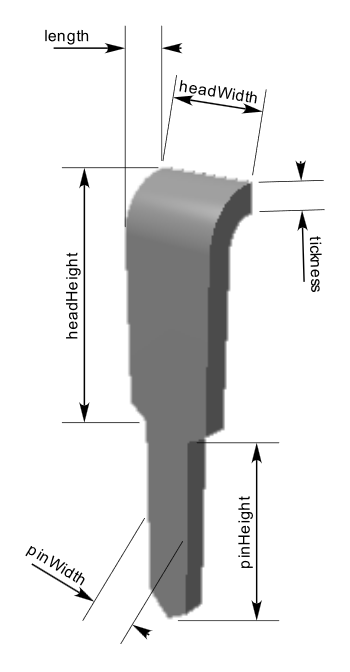

DlxLead.Pin(style, pinWidth, pinHeight, tickness, headWidth, headHeight, length, bFlat=false, arrowAngle=30)

Parameters

Parameter Description
style A Dlx3DStyle object or the index of the style. There are 10 styles available with indexes from 0 to 9.
bFlat If true the initial part has a flat base.
arrowAngle Tip angle value. Enter 0 for a flat terminal.

Return Value

If the operation ends correctly it returns true otherwise it returns false.

Example

  Copy codeCopy code
function OnBuild3DModel()
{
  var ctx = FWiz.Get3DModelCtx();
  var style = FWiz.Get3DStyle(0);
  style.SetStyle("silver");

  var pin = new DlxLead();
  pin.Pin(style, 0.5, 3.3, 0.28, 1.4, 3.14, 0.51);
  ctx.Add(pin);
}
