Builds the Gull-Wing lead.

syntaxSyntax:

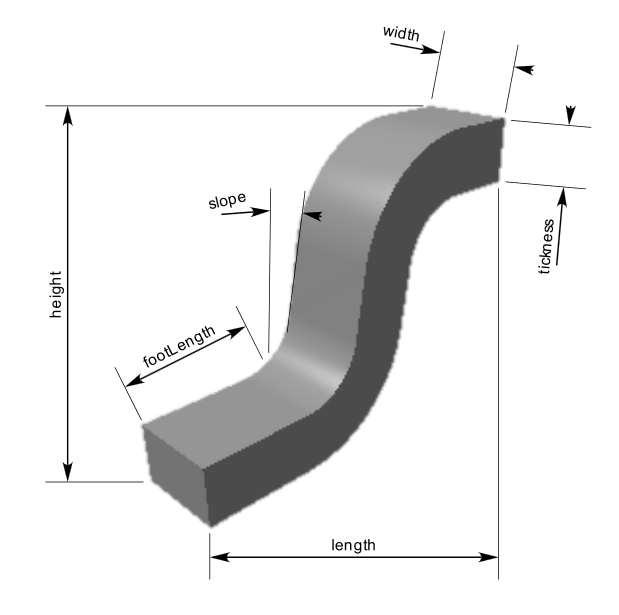

DlxLead.GullWing(style, width, height, tickness, length, footLength, slope, bRounded=true)

Parameters

Parameter Description
style A Dlx3DStyle object or the index of the style. There are 10 styles available with indexes from 0 to 9.
bRounded Specify true for a rounded shape.

Return Value

If the operation ends correctly it returns true otherwise it returns false.

Example

  Copy codeCopy code
function OnBuild3DModel()
{
  var ctx = FWiz.Get3DModelCtx();
  var style = FWiz.Get3DStyle(0);
  style.SetStyle("silver");

  var pin = new DlxLead();
  pin.GullWing(style, 0.3, 0.9, 0.2, 1.2, 0.75, 10, true);
  ctx.Add(pin);
}
